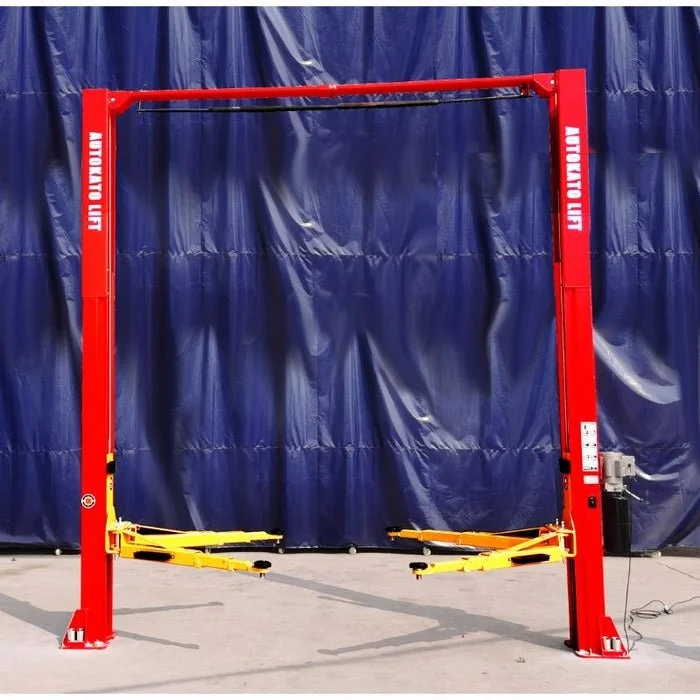

KT-M120 Two Post Clear-floor Vehicles Lift

KATOOL KT-M120 2-Post Clear-Floor Vehicle Lift 12,000 lb Capacity, Overhead Beam, Manual Lock Release Specifications: Lifting Capacity: 12,000 lbs (5,500 KG) Maximum Lifting Height: 70.75″ (1800 mm) Minimum Height: 4.25″ (110 mm) Overall Height: 166.75″ (4235 mm) Overall Width: 165.5″ (4204 mm) Outside Columns: 151.25″ (3840 mm) Inside Columns: 130″ (3390 mm) Drive-Through Clearance: 117.75″ (2990 mm) Motor: 220VAC/60HZ/1PH (110V/60HZ/1PH available as optional add-on for $199) Net Weight: 1653 lbs (750 KG) Certification: CE Approved (115% dynamic load tested, 150% static load tested) Includes: Extended support adaptor sets (+30 mm and +120 mm) Safety Features: Dual-side manual safety release, overhead safety shutoff bar, rubber door protection, foot-protection guardrails with toolbox Tired of the frustration, discomfort, and limitations of working under vehicles with inadequate equipment? The KT-M120 Clear-Floor Two-Post Lift transforms your maintenance experience from a cramped, uncomfortable ordeal into a professional-grade operation with complete access and safety. Unlike jacks and stands that create unstable working conditions with limited access, or budget lifts that wobble under load and make you question your safety, this commercial-quality 12,000-pound capacity lift provides rock-solid stability with completely unobstructed floor access. After installing this game-changing equipment, you’ll immediately notice the difference – oil changes become quick, comfortable tasks rather than backbreaking ordeals; brake jobs that once required awkward positioning now happen at perfect working height; and complex repairs that previously seemed impossible become straightforward projects with full access to components. Your productivity skyrockets as repair times shrink dramatically, your comfort improves as you work standing instead of lying on concrete, and your ability to tackle previously intimidating projects expands with your newfound confidence. The KT-M120 doesn’t just lift your vehicle – it elevates your entire automotive experience from amateur to professional in a single installation. Clear-Floor Design: The Ultimate in Workspace Efficiency The KT-M120’s standout feature is its clear-floor design that maximizes accessibility and workspace utility: Unlike standard two-post lifts with a connecting floor plate that creates a trip hazard and obstructs movement, the KT-M120 features an overhead crossbeam design that completely eliminates floor obstructions. This innovative configuration creates a completely open workspace beneath the vehicle, allowing unrestricted movement of shop tools, oil drain pans, transmission jacks, and other essential equipment. The absence of a base plate also eliminates a common collection point for dirt, oil, and debris that can make other lifts difficult to clean and maintain. This unobstructed floor design transforms your work area into a more efficient, professional environment where tools and equipment roll freely beneath the vehicle without obstacles. The overhead beam not only provides structural stability but also houses the equalizing cables and hydraulic lines in a protected position away from potential damage. This thoughtful design keeps critical components safely positioned where they won’t be accidentally damaged during vehicle service. The dual hydraulic chain-drive cylinders deliver synchronized lifting power while remaining protected within the columns, away from potential impact or contamination. This protected component placement significantly extends service life compared to exposed designs, ensuring reliable operation through years of demanding use. The impressive 117.75-inch drive-through clearance between columns accommodates even wide vehicles with generous space for opening doors. This substantial working area exceeds many competitor models, allowing easy positioning of full-size trucks and SUVs without precision maneuvering. Despite its substantial capacity and workspace, the thoughtful design maintains a reasonable footprint that works in larger residential garages as well as professional shops. The symmetric arm configuration provides versatile vehicle positioning options while ensuring balanced weight distribution across the lift structure. Comprehensive Safety Features for Total Confidence The KT-M120 incorporates multiple layers of safety engineering that reflect its commercial heritage: The dual-side manual safety release system provides convenient access to the mechanical locks from either side of the lift. This thoughtful design ensures the operator can always access the release mechanism from a safe position regardless of vehicle placement or shop layout. The automatically engaging mechanical safety locks provide secure support at multiple heights independent of the hydraulic system. These hardened steel locks ensure the vehicle remains securely supported even during extended work sessions or in the unlikely event of hydraulic pressure loss. The overhead safety shutoff bar provides an additional layer of protection against potential ceiling contact or overhead obstructions. This automatic system immediately stops upward travel if contact occurs, preventing potential damage to the vehicle or building structure. The foot-protection safety guardrails with integrated toolbox prevent foot injuries from moving lift arms while providing convenient tool storage within arm’s reach during repairs. This dual-purpose feature demonstrates the thoughtful, real-world focus that distinguishes professional-grade equipment. The rubber door protection pads safeguard vehicle doors from potential contact with the lift columns, preserving the appearance of valuable vehicles during service. The included extended support adaptor sets (+30 mm and +120 mm) allow precise positioning on manufacturer-recommended lifting points regardless of vehicle design. These versatile adaptors accommodate various frame styles and underbody configurations, ensuring proper weight distribution and secure contact even with challenging modern vehicles with specialized lifting points. Professional-Grade Construction for Long-Term Reliability The KT-M120’s robust engineering ensures exceptional durability and performance: Constructed with heavy-gauge steel throughout, this lift handles years of demanding service without the flexing, stress, or structural concerns common in lighter-duty models. The reinforced columns, overhead beam, and arm assemblies maintain precise alignment even after thousands of lifting cycles under maximum load. The substantial 1653-pound weight creates a solid foundation that resists movement or flexing during operation. This robust construction provides the stability and confidence essential when working beneath suspended vehicles. The precision hydraulic system uses commercial-grade cylinders, seals, and valves to ensure reliable operation through countless lifting cycles. The carefully engineered chain-drive system distributes lifting forces evenly across both columns, eliminating the twist or uneven lifting that can occur with inferior designs. This balanced lifting action protects both the lift structure and vehicles from stress during operation. The high-quality hydraulic system provides smooth, controlled lifting and lowering without the jerky movement common in budget lifts – a critical consideration when positioning valuable vehicles. The impressive 12,000-pound capacity exceeds many competitors in this price range that typically offer only 10,000-pound capacity. This robust rating handles everything from compact cars to full-size trucks and SUVs with substantial safety margins. The CE certification with 115% dynamic load testing and 150% static load testing verifies that this lift exceeds international safety standards – offering peace of mind that can’t be found in uncertified budget alternatives. This certification confirms the lift can safely handle loads well beyond its rated capacity during both stationary and moving operations. Understanding Lift Capacity for Safer Operation The KT-M120’s 12,000-pound capacity rating requires proper understanding for safe application: When evaluating whether this lift suits your needs, consider both total vehicle weight and weight distribution. A vehicle’s weight isn’t evenly distributed, with most passenger vehicles having approximately 60% of their weight on the front axle and 40% on the rear. This means each front arm might need to support 30% of the total vehicle weight independently. For a 9,000-pound truck, each front arm would need to safely support approximately 2,700 pounds. The KT-M120’s robust design ensures each arm safely handles these concentrated loads with substantial safety margin. Many lift experts recommend utilizing no more than 75% of a lift’s rated capacity for routine operations. This safety margin accounts for dynamic loading during vehicle positioning, weight distribution variations, and potential weight additions from vehicle contents or modifications. Following this guideline, the KT-M120 would be ideally suited for vehicles weighing up to approximately 9,000 pounds for regular use. This capacity covers virtually all passenger vehicles, light trucks, and SUVs currently on the road, while still maintaining appropriate safety margins. This substantial capacity becomes particularly important when working with modern trucks and SUVs, which have grown increasingly heavier with each generation. Many current full-size trucks with crew cabs and 4WD can exceed 7,000 pounds before adding any accessories or cargo. When lifting such vehicles with a typical 60/40 weight distribution, the KT-M120’s 12,000-pound rating provides crucial safety margin that 10,000-pound lifts might lack. This capacity advantage becomes even more significant when dealing with vehicles modified with heavier components or carrying tools and equipment during service. Installation Requirements for Optimal Performance The KT-M120’s substantial capacity requires proper installation conditions: The concrete foundation must be at least 5.9 inches (150mm) thick with a minimum 3000 PSI rating to safely support the lift and vehicles. This critical requirement ensures the concrete can withstand the substantial point loads created at the lift’s anchor points when supporting heavy vehicles. Installing on inadequate concrete could result in serious injury or death, making it essential to verify concrete specifications before purchase. Many commercial spaces already meet these requirements, but residential garages might require concrete upgrades before installation. Adequate ceiling height is essential for this lift’s installation, requiring approximately 14 feet minimum for standard installations. This height requirement accommodates the 166.75-inch column height plus additional clearance for vehicles on the lift. Careful measurements of both ceiling height and garage dimensions are important pre-purchase considerations to ensure the lift will fit properly in your specific space. The substantial footprint requires thoughtful planning regarding placement relative to walls, doors, and other garage features. Professional installation by experienced lift technicians is strongly recommended to ensure proper assembly, leveling, and anchoring. The precise alignment of columns, equalizing cables, and hydraulic components is critical for safe operation and long-term reliability. Experienced installers understand the importance of proper torque specifications on critical fasteners and the correct tensioning of synchronization components. The investment in professional installation typically represents a small fraction of the lift’s total cost while providing confidence in its safe, accurate operation. Transform your garage into a professional workspace today! Add the KT-M120 Clear-Floor Two-Post Lift to your cart now and experience the game-changing benefits of commercial-grade lifting equipment. With its robust 12,000-pound capacity, comprehensive safety features, and completely unobstructed floor space, this lift represents the perfect balance of professional quality and practical design. Don’t compromise on equipment that directly impacts both safety and efficiency – choose the lift that delivers commercial-grade performance with unmatched floor access. Your projects will be completed faster, your body will thank you for the improved working position, and your capabilities will expand to tackle even the most challenging repairs with confidence!
