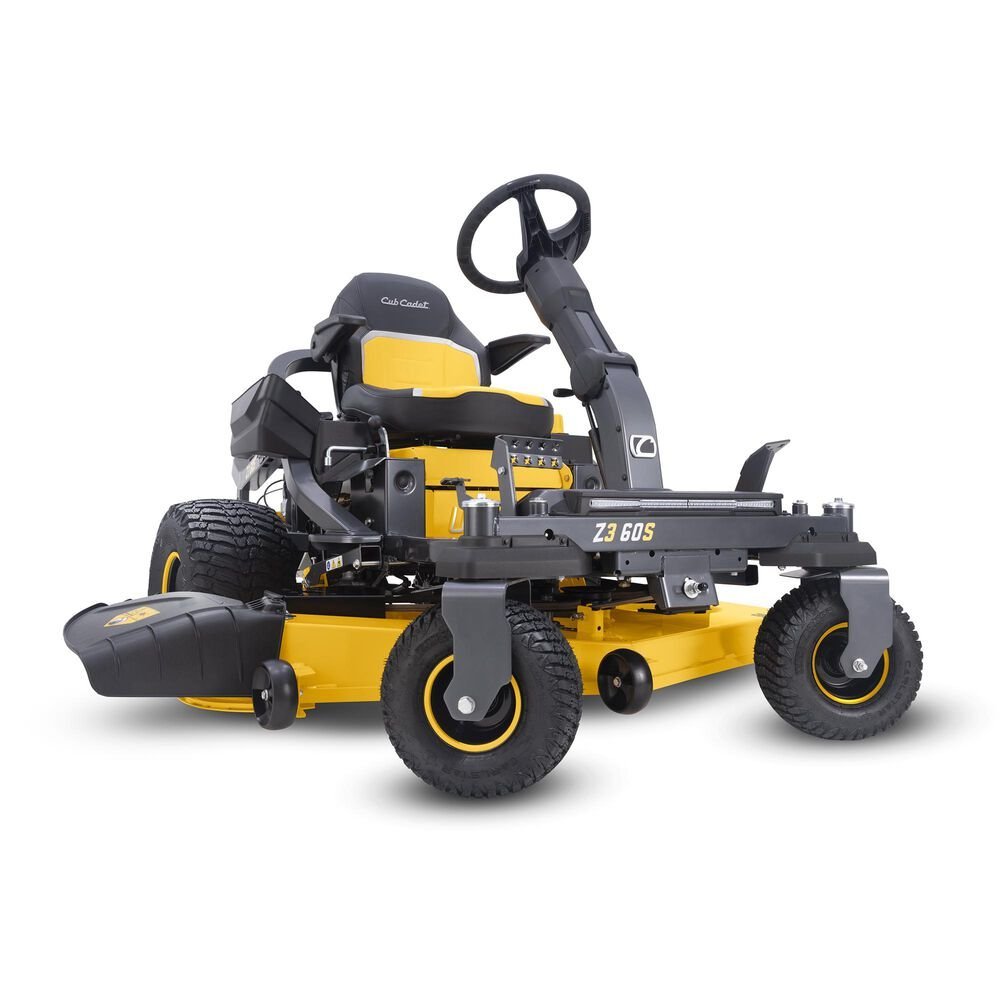

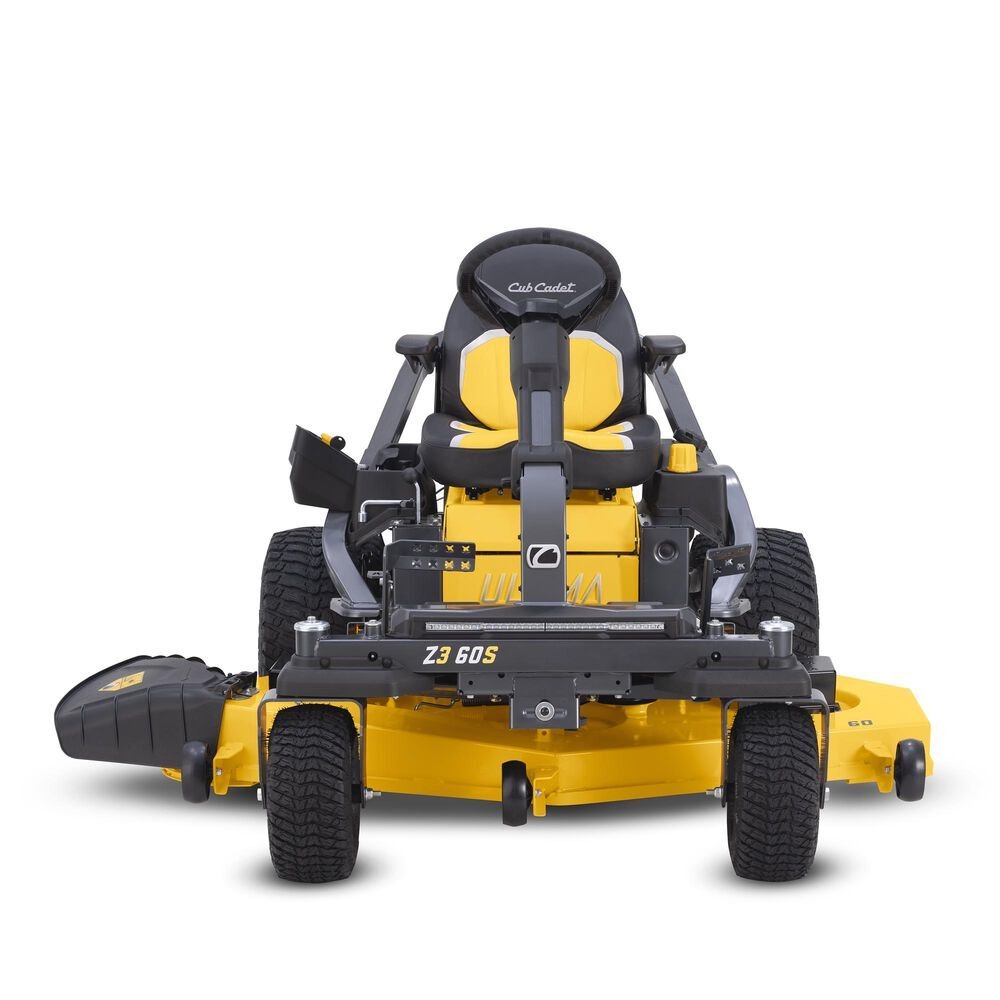

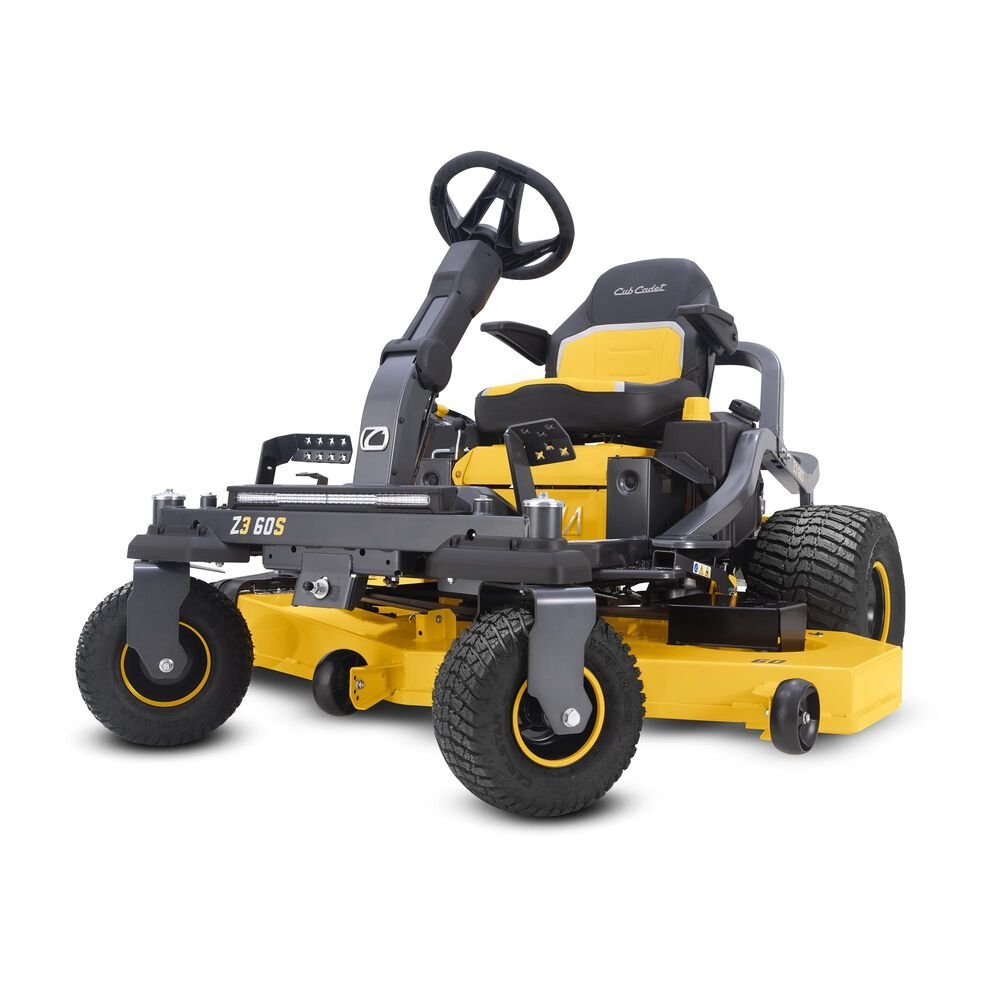

CUB CADET ULTIMA Z3 60S 17CIGGY5A10
$1,809.30
SET UP AND PREP FEES MAY APPLY
Z3 60S
Step up to the advanced Ultima Series™, the Cub Cadet® Ultima Series Z3 60S 23 HP Zero-Turn Lawn Mower with AeroForce™ Fabricated Deck and Synchro-Steer™ Technology is engineered for precision, control, and stability on challenging terrain. Don’t back down from hills and slopes up to 20-degrees. Synchro-Steer™ technology offers 4-wheel control and provides stability for straight-line mowing on hillsides and slopes up to 20-degrees**. Experience uncompromised performance and durable strength, designed to help you mow efficiently and maintain control.
- Experience the ultimate in control even when facing slopes and hills up to 20-degrees with Cub Cadet® steering wheel zero-turns equipped with patented Synchro-Steer™ technology.
- The Ultimate Mowing Experience from Cub Cadet® is powered by a reliable Kawasaki® Engine. A 23HP* Kawasaki® twin-cylinder OHV engine delivers high-performance to tackle your yard.
- An AeroForce™ welded, heavy-duty fabricated deck delivers a signature cut with few clumps and stragglers, fine clippings and evenness.
Engine
- Engine Brand: Kawasaki®
- Engine Model: FR Series
- Engine Model Number: 730V
- Engine Displacement: 726cc
- Engine Output: 24HP
- Starter Type: Electric
- Fuel Tank Capacity: 3.5 gal. US (13.25 L)
- Cylinders: Twin
- Engine Start: Ignition Key
- Engine Oil Capacity: 2.1qt. US (1.89 L)
- Lubrication: Fully pressurized
- Charging System: 12 amp regulated
- Fuel Gauge: No
- Governor: Mechanical
- Choke: Separate Choke
- Air Filter: Dual element
- Oil Filter: Yes
- Fuel Delivery: Carburetor
Battery
- Battery: 230 CCA
- Battery Type: Lead Acid
- Battery Voltage: 12V
Drive System
- Transmission: Hydro-Gear ZT 2800
- Forward Speed: 7 MPH / 11.3 km/h
- Reverse Speed: 3.5 MPH / 5.6 km/h
- Drive System: Hydrostatic
Cutting Deck
- Deck Cutting: Width 60 in
- Deck Wash: No
- Deck Material: 11-gauge steel
- Deck Engagement: (PTO) Electric
- Deck Construction: Fabricated
- Blade(s): 3
- Deck Lift: Foot pedal with Dial Adjust
- Cutting Height Range: 1” – 4.5”
- Anti-Scalping: 2 gauge wheels
- Deck Positions: 15
Warranty
- Residential Warranty: 3-year unlimited hours
- Frame Warranty: Lifetime Limited
- Deck Shell Warranty: Lifetime limited
- Commercial Warranty: No
Chassis
- Frame: 2” x 2” tubular steel
- Turning Radius: 0°
- ROPS: No
- Rear Tow Hitch: Yes
- Corrosion Protection: Yes
Controls
- Cruise Control: No
- Brakes: Disc
- Steering Control: Steering Wheel
Comfort
- Seat Type: 20″ Cut-and-Sew with Head Bolster
- Armrests: No
- Seat Adjustment: Knob
- Front Caster Suspension: No
Wheels
- Rear Tires: 20”x 12”-8″
- Front Tires: 13″x 6.5″-6″
- Tire Tread: Turf Armor
Additional Specifications
- Hour Meter: Yes
- Mulch Kit: Available separately
- Headlight(s): LED
- Cup Holder: Yes
- Operator Presence System: Yes
- Parking Brake: Hand lever
- Model Number: 17CIGGY5A10
- AIR FILTER: KM-11013-0752 OR 490-200-F022
- OIL FILTER: KM-49065-0736
- ENGINE OIL:
- FUEL FILTER: KM-49019-0031
- SPARK PLUG: KM-BPR4ES
- DECK BELT: 754P06094
- DRIVE BELT: 954-04317A OR 490-501-C069
- BLADES : 742P05620
- XTREME BLADES: 742P05620-X
- IGNITION KEY: 925-1745A
- HOUR METER KIT:
